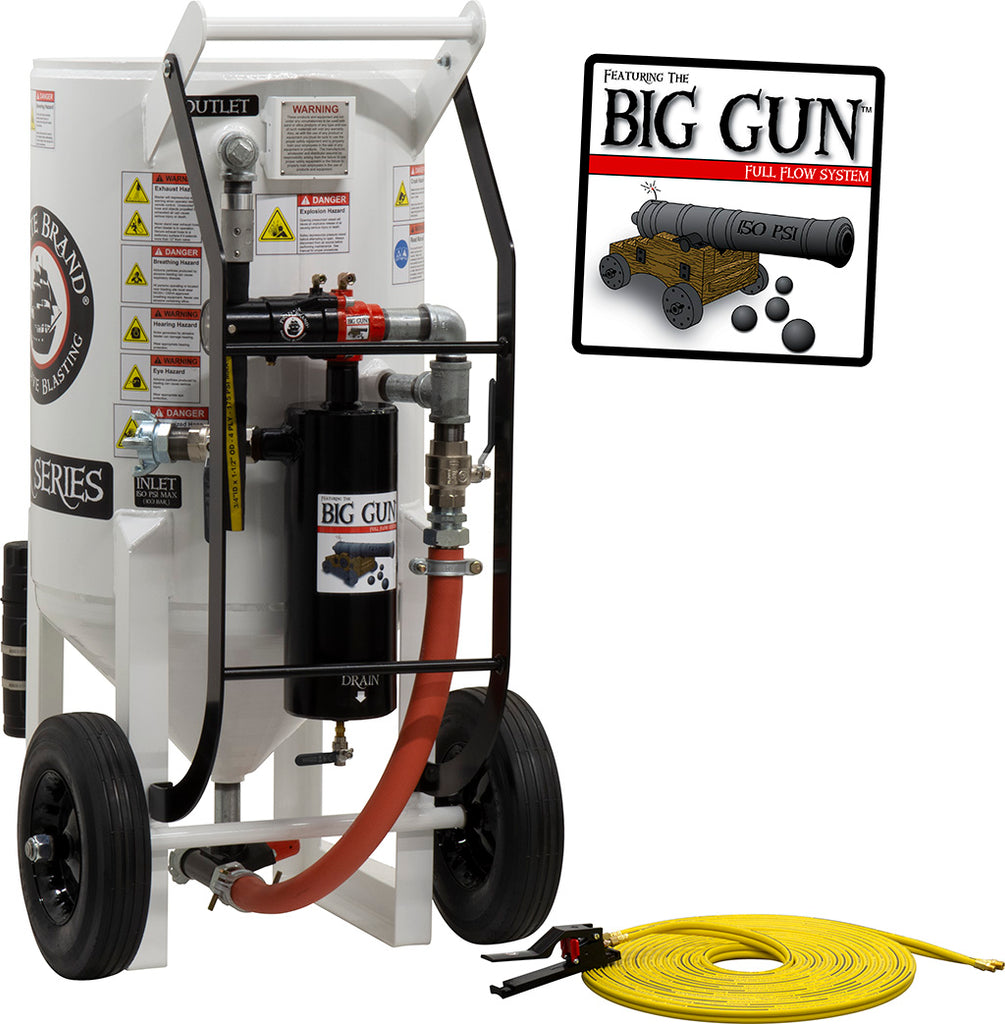

Sandblaster 6.5 cu. ft. (650 lbs.) BIG GUN pressure release pneumatic operated.

$ 5,392.00

Click dropdown menu below for products

Product # / SKU:

Pricing available upon request only.

*************************************

Tel (616) 741-9237 Email biga@sandblaster-parts.com

Choose from available models above by using the drop down list (down arrow), or clicking the smaller photos.

This is a industrial style portable sandblaster made to run all day long day after day. This BIG GUN machine will give you ultimate production.

Description: Portable Sand Blaster System 6.5 cu. ft. (185 liters), 150 PSI (10.3 BAR), Pressure Pot for heavy work load.

FEATURES & BENEFITS OF SPR PNEUMATIC BIG GUN FULL FLOW

A. 6.5 CU. FT. CAPACITY (185 LITERS)
1. 150 PSI VESSEL (10.3 BAR)
2. A.S.M.E. SECTION VIII DIVISION 1
3. CRN FOR ALL PROVINCES
B. PRESSURE RELEASE SYSTEM
1. AUTOMATICALLY BLOWS DOWN THE VESSEL WHEN CONTROL - HANDLE IS RELEASED
2. LOW MAINTENANCE DESIGN
3. SIMPLE TROUBLE SHOOTING FOR IN FIELD REPAIRS
C. BIG GUN FULL FLOW SYSTEMS PROVIDES
1. A ZERO PRESSURE DROP PATH FOR AIR & ABRASIVE TO TRAVEL TO THE BLAST NOZZLE FOR EVERY 1 PSI GAINED OR LOST IN ABRASIVE BLASTING = 1.5% PRODUCTION

2. A MUST FOR #7 & #8 NOZZLES
3. FULL PORT COUPLING BLAST HOSE CONNECTION PROVIDES AN UNRESTRICTED PATH FOR AIR & ABRASIVE TO TRAVEL TO THE NOZZLE
D. HEAVY DUTY BIG GUN MOISTURE SEPARATOR
E. 1-1/2" GALVANIZED PIPING FOR CORROSION RESISTANCE
F. HEAVY DUTY FULL PORT BALL VALVES
G. EXTENDED LIFE SCHEDULE 80 HEAVY DUTY NIPPLE
1. WITHSTANDS ABRASIVE WEAR FOR LONGER LIFE
H. BOLT CLAMPS ON PUSHER LINE MAKE FIELD REPAIRS EASIER
I. COMBINATION VALVE/MPV VALVE
1. COMBINATION VALVE IS A 2 IN 1 DESIGN THAT WILL STOP THE AIR BLASTING AND RELIEVES THE PRESSURE FROM THE VESSEL WHEN THE CONTROL HANDLE IS RELEASED
2. MANUAL PLUNGER VALVE (MPV) IS A SIMPLE RELIABLE DESIGN THAT PROVIDES A WIDE RANGE OF ADJUSTMENT OF ABRASIVE FLOW TO THE NOZZLE.
3. RELIEVING CONTROL HANDLE REDUCES AIR CONSUMPTION AND REDUCES STOPPING TIMES WHEN CONTROL HANDLE IS RELEASED
J. INCLUDES LOADING SKID/VALVE GUARD

**Ships in 4 to 7 Working Days***

CLICK links below for detailed information.

Video of Big Gun Sandblaster click here

How this sandblaster works.

Manual
